The DAC is not the system

The useful but misleading stack

The signal-chain model is useful because it restores the part of hi-fi that product pages prefer to crop out. A DAC is not listened to directly. It is connected to another device, which drives a mechanical transducer, which launches sound into a room, which is sampled by a moving human head and interpreted by a nervous system.

                    DAC residuals            amplifier residuals
                   perhaps −115 dB          perhaps −80 to −100 dB
                          |                          |
                          |                          |
             +---------+  |   +-----------+          |   +-------------+
recording -->|   DAC   |--o-->| amplifier |----------o-->| loudspeaker |--+
             +---------+      +-----------+              +------o------+  |
                                                                |         |
              often much larger nonlinear and response errors --+         |
                                                        pressure waves    |
                                                                          v
              +--------------+                       +-------------+<-----+
experience <--| ears + brain |<----------------------|    room     |
              +-------o------+      sound at head    +------o------+
                      +-- filtering, masking                |
                          adaptation, expectation           |
                                    modes, reflections      |
                              decay, background noise ------+

The problem starts when those rows are read as one sortable error budget. They are not. A DAC's SNR, an amplifier's harmonic distortion, a loudspeaker's off-axis response, a room's 60 Hz null, and the listener's auditory masking are different objects measured under different conditions. There is no honest operation called:

A more useful approximation is a cascade of transfer functions plus nonlinear, level-dependent stages:

Then perception is another mapping:

This still simplifies aggressively. A loudspeaker changes with excursion and temperature. The room response changes with position. The ears and brain adapt to level and environment. But it already explains why reducing a DAC residual by another 10 dB does not imply a 10 dB improvement in the final listening experience.

Once electronics are transparent, the buying question changes from “which DAC is more accurate?” to “which remaining error is still large enough to hear?”

Decibels are not one error currency

A decibel is a ratio, not a substance. Before a dB number means anything, we need to know: ratio of what, relative to what, over which bandwidth, with which weighting, at which output level, into which load?

For voltage or pressure ratios:

Moving from 119 dB SNR to 130 dB SNR is an 11 dB improvement. That is about 3.55 times lower noise voltage, not “eleven times better sound”. The engineering improvement is substantial when viewed on an analyser. Whether it creates an audible change depends on where both noise floors land after gain, attenuation, the amplifier, the loudspeaker and the ambient room noise.

The recording arrives with history

A DAC does not receive the original performance. It receives the result of microphones, microphone placement, preamplifiers, an ADC, edits, processing, mixing, mastering and file delivery. None of those stages is automatically a defect. Most are creative decisions. But they establish the information available before the home DAC starts working.

A 24-bit file is a container with 24-bit sample words. It does not prove that the recording contains 24 bits of clean acoustic dynamic range. The ideal full-scale sine-wave quantisation SNR for an N-bit converter is approximately:

That gives about 98 dB for 16 bits and 146 dB for 24 bits. The equation is a useful theoretical reference, not a promise that a microphone, recording venue, analogue front end or playback room will achieve it. It also assumes an ideal quantiser, a full-scale sine and a specific treatment of quantisation noise.[5] Real measurements need declared bandwidth, weighting and test conditions; AES17 exists partly to make such comparisons less ambiguous.[6]

Dither is worth mentioning here. Proper dither can trade deterministic low-level quantisation distortion for a benign noise floor and preserve linearity below one least-significant bit. Again, this does not create information that was never recorded. It makes the representation of existing low-level information better behaved.

There is a simple consequence. A DAC cannot repair a clipped master, remove microphone self-noise, restore transients compressed during mastering, or infer spatial information that was not captured. It can reproduce the file with very small additional error. That is an important job. It is also a narrower job than the phrase “source of all detail” suggests.

What a modern DAC actually gets wrong

A modern DAC is not merely a lookup table followed by a staircase. A typical path includes input decoding, clock-domain handling, interpolation, oversampling, noise shaping, conversion, analogue reconstruction filtering and an output stage.

             +----------------------+    +----------------------+
PCM input -->|   input receiver /   |--->|  interpolation and   |--+
             |    clock handling    |    |     oversampling     |  |
             +----------------------+    +----------------------+  |
                                                                   v
             +----------------------+    +----------------------+<-+
             | switching or current |<---|   noise shaper or    |
             |   conversion core    |    |  multibit modulator  |
             +-----------o----------+    +----------------------+
                         |
                         v
           +-------------+-------------+
           |  analogue low-pass / I-V  |---> line output
           |           stage           |
           +---------------------------+

Upsampling is useful here, but not because it invents detail. The new samples are calculated from the old samples by an interpolation filter. The benefit is architectural: a sharp reconstruction filter is easier to implement in deterministic DSP than with steep analogue circuitry close to 20 kHz; a high internal rate also leaves a wide ultrasonic region into which a noise shaper can move quantisation energy. A poor resampler can add ripple, aliasing or rounding error. A good one can make the later analogue problem much easier without increasing the information content of the recording.

The Tambaqui's published architecture is technically coherent: asynchronous conversion to 3.125 MHz, a seventh-order noise shaper, PWM conversion and a 32-stage discrete analogue FIR output arrangement.[1] It avoids an R-2R ladder's particular switching-glitch mechanism and a conventional sigma-delta implementation's particular idle-pattern mechanisms. It does not avoid physics. It exchanges those problems for pulse timing, edge symmetry, clock noise, switching energy, component matching, power-supply coupling and reconstruction-filter design.

This is not a criticism. Engineering is almost always the deliberate exchange of one error mechanism for another that is easier to control. The interesting question is whether the residuals are low, stable and benign. Independent Tambaqui measurements indicate that they are: Stereophile reported almost 22-bit resolution in the high-output setting, extremely low harmonics and inconsequential jitter-related sidebands.[2]

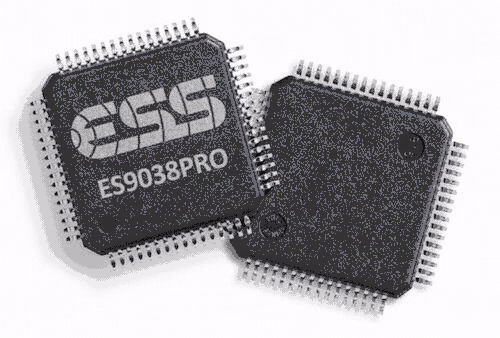

The WiiM Ultra reaches the same broad destination with mass-produced converter silicon and a conventional integrated implementation. Independent Audio Precision measurements at 2 V output reported 119 dB A-weighted signal-to-noise ratio and 0.00019% A-weighted THD+N; unweighted 1 kHz distortion with 24/96 data was lower still in the conditions measured.[3] WiiM also provides several reconstruction-filter choices, digital volume control, streaming, HDMI ARC, phono input, subwoofer management and room correction in a small mass-market product.[4]

So this is not a comparison between a “real DAC” and a toy. It is a comparison between two competent implementations at different points on the curve of diminishing residual error, industrial cost and product ambition.

Both are legitimate products. They are simply solving different business and engineering problems.

119 dB versus 130 dB

Let us take the headline numbers seriously rather than dismissing them. A move from 119 dB to 130 dB SNR is real. In voltage terms the residual noise is reduced by about 3.55 times. If the measurements are comparable, and that condition matters, the quieter converter is objectively better.

It is also useful to keep the 24-bit claim mathematical. Using the ideal quantisation formula, 130 dB corresponds to roughly 21.3 ideal bits, while an ideal 24-bit full-scale sine reaches about 146.2 dB. So 130 dB is exceptional real hardware performance, but it is not literally the theoretical limit of 24-bit PCM. Comparisons with DSD, PWM or another noise-shaped format also require a stated measurement bandwidth because those systems deliberately redistribute noise with frequency.

Now map the numbers into an intentionally simplified listening example. Suppose a digital full-scale peak produces 100 dB SPL at the listening seat. A perfectly gain-scaled 119 dB SNR would put the corresponding noise reference around −19 dB SPL. A 130 dB SNR would put it around −30 dB SPL.

peak at seat       = 100 dB SPL
119 dB SNR noise   = 100 − 119 = −19 dB SPL
130 dB SNR noise   = 100 − 130 = −30 dB SPL

Negative SPL is not a typo. Zero dB SPL is a reference pressure, not “no sound”. The example shows why both figures can become irrelevant in a domestic room with a background level many tens of decibels higher.

The more important comparison is often not between the two DAC noise floors. It is between either DAC and the acoustic noise entering the ears: ventilation, traffic, computers, transformers, people moving, the speaker amplifier's hiss, and the recording's own noise. Noise that is 40 or 50 dB below an already present noise floor does not become audible merely because an analyser can resolve it.

This is where the price question changes character. A 29-times price difference can buy an 11 dB measured SNR advantage, custom circuitry, low-volume manufacturing, industrial design and a particular ownership experience. It cannot deliver a 29-times perceptual improvement because perception is not linear with retail price or with SINAD.

The amplifier and gain structure

The amplifier row is often written as “−80 to −100 dB” and left there. That range is too crude to describe a product, but it points to a useful idea: a clean modern amplifier may also be operating below obvious audibility while still interacting with the system in ways a DAC headline does not capture.

The important variables are:

• Gain. Excess voltage gain raises the audibility of upstream and amplifier noise. A 6 V DAC output feeding a sensitive amplifier may provide less usable volume-control range than a 2 V output.
• Clipping. An amplifier with excellent small-signal measurements can become very audible when peaks exceed its voltage or current capability.
• Load behaviour. Loudspeakers present frequency-dependent impedance and phase. The same amplifier can behave differently into a resistive test load and a difficult loudspeaker.
• Output impedance. A sufficiently high output impedance can alter the loudspeaker's frequency response according to its impedance curve.
• Noise at the tweeter. System hiss depends on amplifier input noise, gain and loudspeaker sensitivity, not on the DAC alone.

From a programmer's perspective, gain staging is type correctness. A component may be excellent in isolation and still be used in the wrong numeric range. Feeding too much level into the next stage is the analogue equivalent of overflowing a carefully implemented function.

# A simplified failure mode
excellent_dac_output = 6.0  # volts RMS at full scale
amp_input_headroom   = 2.0  # illustrative, not a universal value

if excellent_dac_output > amp_input_headroom:
    result = "clipping, now very audible"

A more expensive DAC may offer better output-stage drive, balanced connections, flexible level settings and lower noise. Those are useful system properties. But they matter because of the equipment around the DAC, not because “more volts” or “balanced” is automatically more musical.

The loudspeaker is mechanical

A loudspeaker converts voltage into magnetic force, force into acceleration, acceleration into cone motion, and cone motion into pressure waves. It has a voice coil, suspension, diaphragm, enclosure, crossover and often a port. All of them have limits. Unlike a DAC's arithmetic, the loudspeaker's behaviour changes materially with frequency, angle, excursion, temperature and time.

A useful abstract model is:

That model contains several families of error:

Klippel's measurement framework is useful because it separates distortion mechanisms instead of pretending that one THD number describes a transducer.[17] Motor-force factor Bl(x), suspension stiffness Kms(x) and inductance Le(x,i) can all vary with displacement or current. The resulting distortion also depends on the stimulus. A low-frequency sine, a two-tone intermodulation test and music do not stress the driver in the same way.[18]

At moderate levels a good loudspeaker may keep midband distortion low, while deep bass or high output can reach tenths of a percent, whole percentages or more. Translating only the ratios:

0.1% distortion  ≈ −60 dB
1.0% distortion  ≈ −40 dB
3.0% distortion  ≈ −30.5 dB

Those numbers are enormously larger than −115 dB DAC residuals. Yet even here, “larger” does not automatically mean “equally audible”. A low-order harmonic may be strongly masked by the fundamental. High-order or inharmonic products can be more conspicuous at lower numerical levels. Music is not a stationary sine wave. The important point is not that all speaker distortion is audible. It is that the transducer operates in a much less ideal and much more programme-dependent regime than a competent line-level converter.

Frequency response and directivity are often more perceptually consequential than THD. A broad 2 dB tonal imbalance across an octave can change the character of every recording. A distortion component 100 dB down usually cannot. A speaker with smooth off-axis behaviour also produces reflections whose spectrum resembles the direct sound, which tends to integrate more naturally in a room. This is why anechoic on-axis response alone is insufficient, and why comprehensive loudspeaker measurements examine a family of angles and predicted in-room behaviour.[13][14]

The loudspeaker is not merely the next box after the amplifier. It is the device that creates the acoustic field the room will multiply, delay and return to the listener.

The room becomes part of the loudspeaker

In the diagram, the room appears after the speaker. In reality they form a coupled system. The speaker's radiation pattern determines which surfaces receive energy. The boundaries return delayed copies. At low frequencies, the dimensions of the room constrain the possible pressure patterns. Move the speaker or listener and the result changes.

The sound at one ear is therefore a sum:

There are three practical ways the room changes what we hear.

Frequency: peaks, dips and modal structure

Below the room's transition region, individual resonances are sparse enough to dominate. In a rectangular room the mode frequencies can be approximated by:

Here c is the speed of sound, L/W/H are room dimensions, and p/q/r are non-negative integers. The simplest axial modes involve one dimension at a time. For a 5 × 4 × 2.6 metre room, the first axial modes are approximately 34.3 Hz, 42.9 Hz and 66.0 Hz.

That does not mean those three frequencies will simply be “too loud”. Each mode creates pressure maxima and minima in space. At one seat a frequency may boom. Half a metre away it may collapse into a null. This is why bass reviews written without speaker and seat positions are incomplete.

The approximate Schroeder transition frequency is commonly estimated as:

where T60 is reverberation time in seconds and V is room volume in cubic metres. The transition is gradual rather than a hard border; Schroeder later revisited the interpretation of the crossover.[19] In our 52 m³ example with a 0.4 second decay, the estimate is roughly 175 Hz. Below that, placement, multiple bass sources and modal treatment dominate. Above it, the growing density of reflections makes statistical and perceptual descriptions more useful.

Time: reflections and decay

A room does not only change how much energy exists at each frequency. It changes when that energy arrives. A reflection delayed by 5 ms travels roughly 1.7 metres farther than the direct path. Added to the direct sound, it creates a comb pattern with notches spaced about:

A measurement microphone clearly displays that comb. Human hearing does not necessarily interpret it as the same jagged frequency response, because the two ears, head movement and precedence mechanisms partially separate direct and reflected information. But early reflections can still alter timbre, image width, apparent source size and clarity. Their effect depends on direction, delay, spectrum and level.

For critical impairment tests, ITU-R BS.1116 treats the room as part of the test apparatus. It specifies, among other controls, that early reflections arriving within 15 ms should be at least 10 dB below the direct sound between 1 and 8 kHz, and that background noise should preferably stay below NR10 and never exceed NR15.[7] A normal living room is not required to meet that standard. The standard is useful because it shows how carefully the environment must be controlled before making confident claims about tiny codec or converter differences.

Low-frequency decay is especially important. A 45 Hz mode that rings for several hundred milliseconds can overlap the next bass note, obscure pitch changes and change the apparent timing of the system. That is not DAC jitter. It is acoustic energy stored in the room.

Space: the result moves with the listener

A DAC measurement is nearly invariant when the analyser moves ten centimetres. A room response is not. At low frequencies, small seat changes can move the head between different modal pressures. At high frequencies, head angle changes interaural and pinna cues. A single microphone trace at one point is therefore evidence about one point, not a full description of the listening area.

Speaker placement is often the highest-value zero-cost adjustment. Distance from boundaries changes low-frequency reinforcement and reflection timing. Toe-in changes the direct-to-reflected ratio and side-wall illumination. Listening distance changes how much direct sound arrives before the room. Genelec's placement guidance treats monitors, walls and the listening position as one optimisation problem for exactly this reason.[15]

What equalisation can and cannot do

DSP can be very effective when it cuts broad peaks, aligns subwoofers, corrects delay and applies a sensible target. It is less effective against a deep cancellation null. If direct and reflected waves cancel at the ear, adding 12 dB of electrical power may create more cone excursion and less headroom while the geometry continues cancelling the result.

good correction target:
  repeatable peak + adequate headroom → cut it

bad correction target:
  deep spatial cancellation → do not brute-force it with boost
  change speaker / subwoofer / seat position first

Multiple subwoofers can improve low-frequency consistency across seats by exciting the room in different spatial patterns, after which delay, level and EQ can finish the work.[26] Absorption can reduce decay and reflections, but bass absorption requires size and placement. Diffusion can redistribute energy, but it cannot repeal room dimensions. Automated correction is useful when it is treated as measurement-assisted system integration rather than a “make sound better” button.[16]

The ear is not an Audio Precision analyser

The room finally delivers two pressure signals, one at each ear. What happens next is not a neutral recording of those waveforms.

The outer ear and ear canal filter sound before it reaches the eardrum. The middle ear transmits vibration through the ossicles. In the cochlea, a travelling wave distributes energy along the basilar membrane; different regions respond most strongly to different frequency ranges. Hair cells convert mechanical motion into neural activity, and the auditory nerve sends a coded representation toward the brain.[9]

That compact description hides the part most relevant to hi-fi: the cochlea is active and nonlinear. Outer hair cells contribute frequency-selective gain at low levels, sharpening tuning and compressing a very large acoustic range into the operating range of the nervous system. The response changes with level and includes suppression and intermodulation phenomena.[10] Hearing is therefore not a 24-bit linear ADC connected to a spectrum analyser.

Auditory filters and masking

The auditory system behaves approximately like a bank of overlapping frequency-selective filters. The bandwidths are often discussed in terms of critical bands or equivalent rectangular bandwidth. Glasberg and Moore's work provides a widely used model for deriving those filter bandwidths from masking data.[11]

This matters because a weak component is easiest to hear when it falls into a quiet spectral and temporal region. Put it near a stronger component and the stronger sound can mask it. A −70 dB spur in isolation is not the same perceptual event as the same spur under a dense guitar chord. The ear does not inspect the waveform sample by sample; it detects patterns through frequency-selective, time-dependent channels.

Masking is one reason raw distortion percentages are incomplete. The order and placement of distortion products matter. A second harmonic of a low tone may fall under strong harmonic masking. Intermodulation products between unrelated tones can land in less protected regions. A short noise burst immediately before or after a transient can be treated differently from continuous noise at the same RMS level.

Loudness depends on frequency and level

Equal-loudness contours describe the sound-pressure levels required for pure tones at different frequencies to be perceived as equally loud under specified conditions. ISO 226:2023 is the current standard reference.[8] The practical lesson is familiar: at low playback levels we are relatively less sensitive to deep bass and, to a lesser extent, the highest frequencies. As level rises, perceived tonal balance changes.

This can easily be mistaken for equipment character. Compare two DACs at levels differing by a few tenths of a decibel and the slightly louder one may seem fuller, clearer and more dynamic. The listener is reporting a real perceptual difference; the cause is simply not the converter architecture.

Two ears infer a scene

Localization uses differences in arrival time and level between the ears, along with spectral filtering by the head and pinnae. The brain also handles reflections intelligently. When similar wavefronts arrive close together from different directions, listeners often perceive one fused event whose location is dominated by the first arrival, the precedence effect.[12]

This is why a room does not merely sound like an anechoic response plus obvious echoes. The direct sound often anchors location while later energy contributes width, spaciousness, timbre and reverberance. The result depends on delay and direction. A side-wall reflection and a floor reflection at the same measured level need not create the same perception.

The brain adapts and predicts

After a few minutes in a room, its acoustic signature becomes less conspicuous. We remain able to understand speech and identify sources across wildly different environments. This adaptation is useful for survival and annoying for comparative audio work. It means memory, attention and context become part of the measurement instrument.

Expectation does not mean fabrication. A listener who knows that one DAC is heavier, warmer, discrete and expensive has additional information before the first note. The brain combines sensory evidence with prior beliefs. That is normal perception. It is also why blind controls are needed when the question is specifically whether the audible signal differs.

Headphones remove the room, not perception

Headphones are useful for DAC comparison because they remove most loudspeaker-room interaction. They do not remove transducer frequency response, seal variation, fit, channel matching, output-impedance interactions, amplifier gain or psychoacoustics. With headphones the transducer usually remains the largest tonal variable, just in a smaller and more repeatable acoustic system.

Why sighted comparisons are persuasive

Sighted listening is not useless. It tells us whether the complete ownership experience is satisfying: interface, appearance, tactile quality, silence between tracks, volume behaviour, reliability and the pleasure of using an object. Those are valid reasons to prefer one product.

It becomes unreliable when used to isolate a tiny signal difference. Several mechanisms work together:

• Level. Slightly louder is commonly interpreted as clearer or more dynamic.
• Switching delay. Fine auditory detail is difficult to retain while reconnecting cables and restarting a track.
• Different filters or outputs. A reconstruction-filter choice, output level, phase inversion or clipping difference can masquerade as a price-tier difference.
• Expectation and confirmation. Knowing the component identity changes attention and interpretation.
• Multiple uncontrolled variables. Different streamers, analogue cables, input stages or volume controls mean the DAC is no longer the sole variable.

ITU-R BS.1116, designed for detecting small audio impairments, calls for rigorous listening conditions, trained assessors, double-blind presentation, a hidden reference and rapid switching. It explicitly notes the limitations of medium- and long-term auditory memory for this kind of comparison.[7] An audiophile cable swap across a room is not a less bureaucratic version of the same experiment. It is a different experiment.

There is also a useful caution for the opposite camp. Joshua Reiss's meta-analysis of high-resolution-audio experiments found a small but statistically significant ability to discriminate high-resolution from standard-quality conditions, with training improving results.[20] That does not prove that a £9,999 transparent DAC is distinguishable from a £349 transparent DAC. It does show why “nobody can ever hear anything” is too strong. Claims should be scoped to the devices, signals, levels, listeners and test protocol actually studied.

A controlled null result means “we did not detect a difference under these conditions.” It does not mean “the devices are metaphysically identical.”

A fair WiiM Ultra versus Tambaqui test

Suppose the practical question is not philosophical: can I hear the Tambaqui's analogue output against the WiiM Ultra in my system? A useful test is possible, but the details matter more than the playlist.

1. Use the same source data. Feed both devices a bit-identical stream, ideally split from the same source or synchronized in a way that allows rapid switching.
2. Match analogue level under load. Measure at the amplifier input or with an appropriate high-impedance instrument. A conservative target is within roughly 0.1 dB. Do not trust front-panel percentages.
3. Remove obvious configuration differences. Disable EQ, room correction and loudness unless those features are the subject of the test. Choose comparable reconstruction filters where possible.
4. Check headroom. Confirm neither DAC clips intersample peaks and neither overdrives the amplifier input. Match polarity and channels.
5. Switch rapidly and silently. A relay switcher with hidden randomization is much better than cable changes. Benchmark describes a practical level-matched listening methodology and the reasons for fast switching.[22]
6. Use a hidden reference. ABX asks whether unknown X is A or B. The AES provides reference material on ABX methodology and its statistical interpretation.[21]
7. Run enough trials. In 16 binary trials, 12 correct has a one-sided chance probability of about 3.84%; 13 correct is about 1.06%. Decide the stopping rule before seeing the result.
8. Add a positive control. Verify that the setup can reveal a known small difference, such as a subtle level or EQ change. Otherwise a failed discrimination may reflect a broken test.

The programme should include exposed material: quiet fades, solo instruments, spatial cues, dense high-frequency content and low-frequency transients, but it should also be familiar. Training often consists of learning what a particular impairment sounds like, not acquiring supernatural hearing.

Two outcomes are both useful:

My prediction, based on the published residuals, is that a properly level-matched comparison through a clean amplifier would be difficult to pass reliably. That is a prediction, not experimental data for your room and ears. The correct way to challenge it is a controlled test.

Where the price difference goes

A same-currency retail snapshot makes the scale concrete. On 27 August 2026, UK listings showed the Tambaqui at £9,999 and the WiiM Ultra around £349: approximately 28.7 times the price.[23][24] Prices and taxes move, so the ratio is not a permanent specification. It is close enough to frame the question.

The extra money is not necessarily fictional. Low-volume high-end hardware has a very different cost structure:

• custom DSP and conversion architecture rather than an off-the-shelf DAC core;
• precision clock, power-supply and analogue-output design;
• more component selection, calibration and test time per unit;
• machined enclosure, display, controls and industrial design;
• smaller production runs and less ability to amortise engineering;
• specialist distribution, dealer demonstrations, support and warranty;
• luxury positioning and the margin the market will accept.

These costs can produce a better-built, better-measuring and more desirable object. The mistake is to assume that retail price is proportional to audible information. Once the cheaper device's residuals have crossed below the combined audibility threshold of the system, further improvement becomes a precision-engineering achievement rather than a guaranteed listening upgrade.

There is a software analogy I find useful. Suppose one implementation returns an answer with an error of one part per million and another with an error of one third of a part per million. The second function is genuinely more accurate. Then its output is passed into:

heard = listener(
  room(
    loudspeaker(
      amplifier(
        dac(recording)
      )
    )
  )
)

# later stages are nonlinear, stateful and position-dependent

Optimising the first small residual can be intellectually beautiful. It is not automatically the highest-impact optimisation for the returned value.

A more useful upgrade budget

There is no universal spending order. A system with audible amplifier hiss needs a different fix from a system with a 15 dB bass null. But when a modern DAC is already clean, I would inspect the rest of the chain in roughly this order:

1. Placement and listening geometry. Move speakers, subwoofers and seat before buying anything. Measure the change rather than relying on one track.
2. The loudspeakers. Tonal balance, directivity, output capability and compression affect every second of playback. A better transducer can change both direct sound and the spectrum of reflections.
3. Bass integration. One or more subwoofers, appropriate crossover, delay and level alignment can reduce excursion in the main speakers and address the room's modal region.
4. Room measurement and treatment. A calibrated microphone, repeatable measurements, sensible absorption and controlled reflection strategy make the problem visible.
5. DSP and room correction. Correct stable peaks and integration errors; avoid heroic boosts into cancellation nulls. The WiiM's own room and bass-management functions may alter the response at the seat far more than replacing its converter stage.[4]
6. Amplifier suitability. Ensure enough voltage/current headroom, low enough noise, stable behaviour into the loudspeaker and a sensible gain structure.
7. DAC features and residuals. Upgrade for connectivity, ergonomics, balanced output, volume implementation, headphone drive, measured problems, build quality, or because the object itself is worth owning.

This is the uncomfortable part of modern digital audio: mass-produced silicon has made excellent conversion cheap. The high-end manufacturer is left solving the final fraction of a problem that the listener's room may still be failing by whole decibels and hundreds of milliseconds.

That does not make the expensive product a scam. A mechanical watch is not fraudulent because quartz keeps time more cheaply. Craft, architecture, scarcity, service and industrial design have value. The clean claim is “this is an exceptional implementation”. The unsupported claim is “therefore it must reveal dramatically more music in every competent system”.

Where I would land

The Tambaqui's operating principle is not nonsense. Its measurements indicate that the design works. It is a serious attempt to reduce conversion errors with a distinctive architecture, and it appears to achieve state-of-the-art performance.[1][2]

The WiiM Ultra is not the same object. It is cheaper, integrated, mass-produced and function-heavy. Its analogue output nevertheless measures well enough that, in a sensibly configured system, the remaining errors are already very small.[3]

So can the expensive DAC sound different? Yes, in principle and under some conditions: different reconstruction filters, analogue levels, clipping behaviour, output impedance, noise, grounding or an intentionally voiced output stage can create audible differences. A specific difference is an experimental question.

Would I expect the move from a properly configured WiiM Ultra analogue output to a Tambaqui to produce a reliable, obvious transformation in a normal speaker system? No. I would expect the loudspeaker, bass integration, seat position, room decay, background noise and listening level to dominate. I would also expect a sighted comparison to produce a stronger impression than a level-matched blind one.

The final chain is therefore not:

better DAC measurement
        ↓
better music

It is closer to:

recording
   ↓
accurate conversion
   ↓
correct gain and adequate amplifier headroom
   ↓
well-behaved loudspeaker at the required level
   ↓
placement + bass integration + controlled room
   ↓
listener, level, attention and hearing

The DAC can be the best-engineered box in the room and still not be the room's most audible problem.

That is where I would put the price difference. The Tambaqui buys a rare implementation, exceptional measured performance and the satisfaction of owning it. The WiiM buys a sufficiently accurate converter plus system tools that may have more leverage over the sound reaching the sofa. Which one is “worth it” depends on whether the target is audible improvement, engineering fascination, product experience, or all three. They should not be confused.
