Modern streamers and amplifiers often include a setting called a DAC digital filter. On devices such as the WiiM Amp Ultra, this setting changes how the digital-to-analog converter reconstructs an analog signal from digital audio. It is not an equalizer, tone control, loudness setting, or room-correction profile. Its effect is usually subtle, and in many systems it may be difficult to hear reliably.
Even so, the filter choice can slightly influence perceived transient behavior, treble smoothness, and the handling of ultrasonic content near the edge of the digital audio band. For a system feeding Wharfedale Super Lintons, and for a listener who does not like bright records, some settings are more sensible starting points than others.
DAC digital filters
Digital audio must be converted into a continuous analog waveform before it reaches the speakers. The DAC uses a reconstruction filter to remove unwanted ultrasonic images created during conversion. Different filters make different trade-offs between frequency response, phase behavior, ringing, and ultrasonic suppression.
The audible differences are usually much smaller than the differences caused by speaker placement, room acoustics, mastering quality, EQ, volume level, or source quality. DAC filters should therefore be treated as fine-tuning options rather than major sound-shaping tools.
Common filter terms
| Term | Meaning | Practical effect |
|---|---|---|

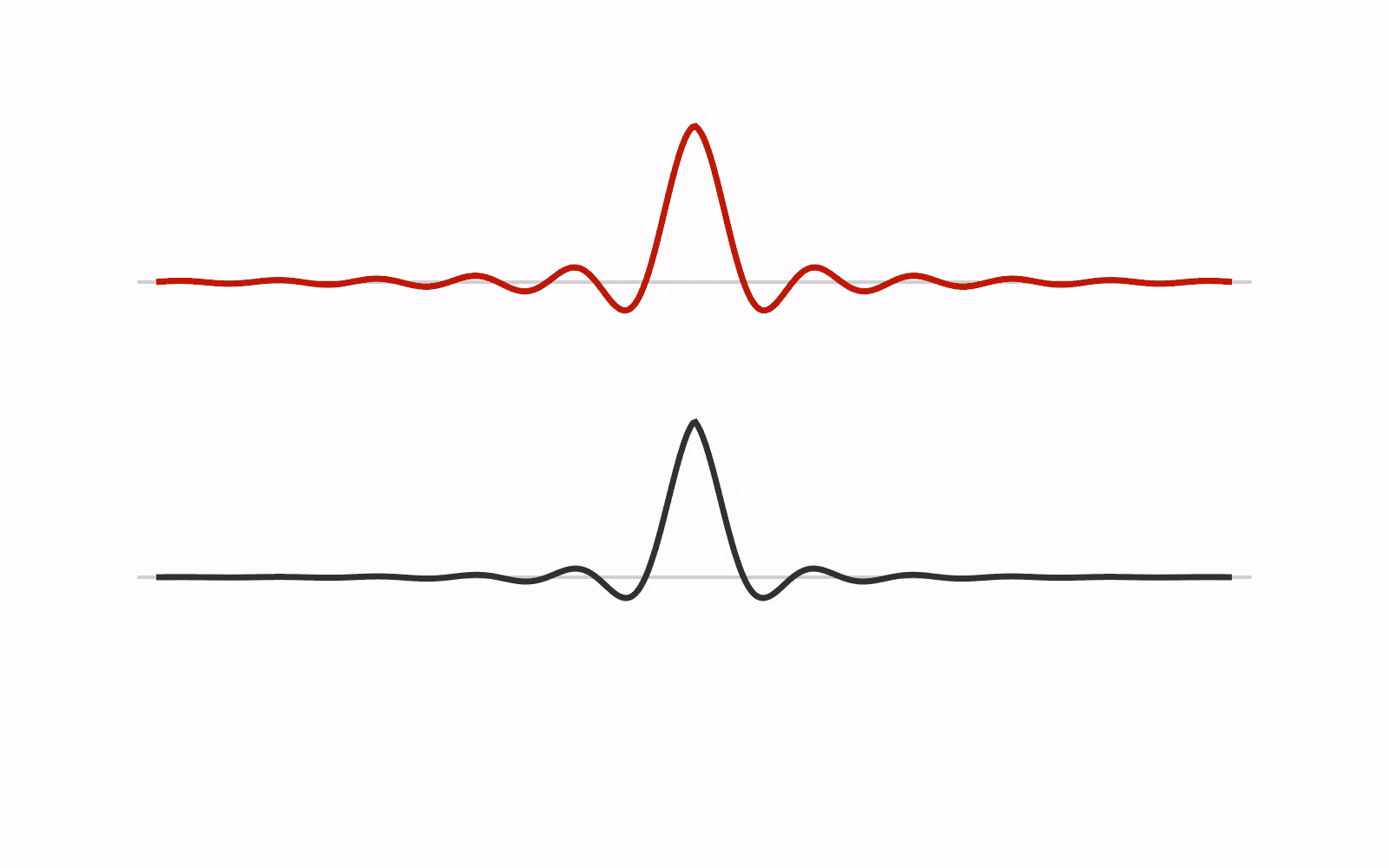

| Minimum phase | A filter design that avoids pre-ringing before a transient. | Often described as more natural or less clinical, though the difference is usually subtle. |
| Linear phase | A filter design that preserves phase relationships across frequencies. | Technically clean and accurate, but may include pre-ringing around transients. |
| Fast roll-off | A steep filter that strongly removes ultrasonic images near the top of the audio band. | More measurement-oriented and precise; sometimes perceived as more explicit. |
| Slow roll-off | A gentler filter with less aggressive high-frequency cutoff behavior. | Can sound slightly smoother or softer, but rejects ultrasonic images less strictly. |
| Low ripple | A design intended to reduce small variations in the passband. | Neutral and measurement-focused; not necessarily the best choice for reducing perceived brightness. |
| Apodizing | A filter intended to reduce ringing or artifacts from earlier digital filtering stages. | Can be useful with older CD masters or recordings that sound harsh or edgy. |
WiiM Amp Ultra filter options
The filter names shown in the WiiM interface describe different combinations of the design choices above. The descriptions below use practical listening language, not strict laboratory ranking.
Minimum phase (default)
This is the recommended default setting. It is a safe general-purpose option and avoids pre-ringing. It is a good starting point for most listening, including streaming music, CDs, and YouTube playback.
Linear phase fast roll-off apodizing
This option may be useful when recordings sound digitally hard, edgy, or affected by older mastering choices. It is worth trying with older CDs, early digital recordings, and bright remasters.
Linear phase fast roll-off
This is a more reference-oriented option. It prioritizes accuracy and strong filtering. It may be suitable for analytical listening, but it is not the first choice for someone sensitive to bright or clinical sound.
Linear phase fast roll-off low ripple
This is also a clean and neutral option, with attention to passband behavior. It can be a good technical choice, but it may not be the most comfortable option for bright records.
Linear phase slow roll-off
This setting may soften the top end slightly compared with fast roll-off choices. It is generally relaxed, though it is not as directly aligned with natural transient behavior as minimum-phase options.
Minimum phase fast roll-off
This setting combines the no-pre-ringing behavior of minimum phase with stronger filtering. It may sound punchy and clear while remaining less “pre-ringing” oriented than linear-phase filters.
Minimum phase slow roll-off
This is a strong candidate for listeners who dislike bright records. It is likely to sound slightly smoother or more relaxed than the default, although the change should still be considered subtle.
Recommended filter for Spotify Lossless and Super Lintons
For Spotify lossless playback through a WiiM Amp Ultra into Wharfedale Super Lintons, and for a listener who does not like bright records, the most practical starting point is:
This option is the most likely to provide a slightly softer and less etched presentation without using EQ. It should pair well with a speaker such as the Super Linton, which is generally chosen for a natural rather than aggressively analytical presentation.
If this setting sounds too soft, less focused, or slightly less detailed, the next setting to try is minimum phase (default). If harshness seems related to older digital recordings or bright CD-era masters, linear phase fast roll-off apodizing is also worth testing.
Filter ranking for this setup
- Minimum phase slow roll-off: best starting point for reducing perceived brightness.
- Minimum phase (default): safest neutral choice if slow roll-off sounds too soft.
- Linear phase fast roll-off apodizing: useful for older or harsher digital recordings.
- Minimum phase fast roll-off: clear and punchy, but may not be as smooth.
- Linear phase slow roll-off: relaxed, but not the first minimum-phase choice.
- Linear phase fast roll-off low ripple: technically clean, less tailored to brightness sensitivity.
- Linear phase fast roll-off: most reference-like, but least aligned with a preference against bright sound.
YouTube Opus in the chain
YouTube often uses Opus for audio streams. A stream labeled around 0.16 Mbps equals approximately 160 kbps Opus. This is a good lossy format and, for normal listening, can sound close to transparent. It is not equivalent to lossless, but it is much better than older low-bitrate MP3-style expectations might suggest.
Compared with high-end lossy formats, 160 kbps Opus is generally strong. Compared with lossless formats such as FLAC, ALAC, or Spotify lossless, it is technically inferior because some source information has already been discarded. Converting YouTube Opus to a lossless file does not restore the lost information; it only stores the lossy stream in a larger container.
Lossless streaming versus DAC filters
Spotify lossless, assuming the playback chain is configured correctly, gives the DAC more complete source data than a lossy stream. However, a DAC filter still operates only at the conversion stage. It cannot correct a bright master, undo compression, remove distortion from the recording, or substantially alter tonal balance.
If a record is bright because of the master, the most effective fixes are usually EQ, room correction, speaker positioning, or listening level adjustment. A DAC filter can make a small difference, but it should not be expected to act like a treble control.
Setup notes
Simple test method: choose one filter and keep it for several days. Then compare it with one alternative using the same tracks at the same volume. Quick switching can be misleading because small level or attention differences may feel like quality differences.
For this system and preference, a sensible test sequence is:
- Set the WiiM Amp Ultra to minimum phase slow roll-off.
- Listen for several days using familiar bright records and normal listening volume.
- Compare it with minimum phase (default).
- Try linear phase fast roll-off apodizing only if older or harsh digital recordings remain unpleasant.
If brightness remains a problem, use gentle EQ rather than relying only on the DAC filter. A small treble reduction, a light high-shelf cut above 6–8 kHz, or a narrow reduction around 3–6 kHz can be more effective, depending on whether the issue is cymbal glare, vocal sharpness, guitar bite, or room reflection energy.
Recommended setting
For Spotify lossless through the WiiM Amp Ultra into Super Lintons, with a preference against bright recordings, the most appropriate filter to start with is minimum phase slow roll-off. If it sounds too soft, return to minimum phase (default). For older or harsh digital masters, test linear phase fast roll-off apodizing.
The filter choice is a fine adjustment. It can help shape the final presentation slightly, but the main determinants of sound remain the recording, the speaker-room interaction, speaker placement, EQ, and listening volume.
