Cooling a fanless MacBook Air: pads, shims, stands, and airflow

1. The thermal problem

The MacBook Air is fanless. That is the defining constraint. The M4 SoC can reach much higher short-term power than the chassis can reject indefinitely. Notebookcheck's testing of the 15-inch M4 Air found that under combined CPU/GPU stress the SoC initially consumed about 29 W, then quickly dropped to around 9 W as the passive chassis saturated.¹ Notebookcheck's M4 processor page also lists the Air 13 M4 entry configuration at roughly 20 W short-term and 8 W sustained.²

That implies two different cooling targets:

The practical goal should therefore be framed as raising sustained performance and delaying throttling, not assuming the Air can become a fully continuous 27 W machine without significant external help.

2. What internal thermal pads do

The common MacBook Air thermal pad mod creates a better conduction path from the logic board or chip-area spreader into the aluminum bottom shell. The M2 Air version of this mod became widely discussed after Max Tech demonstrated a low-cost pad modification; 9to5Mac summarized the idea as adding a thermal pad above the logic board where the M2 chip sits, transferring heat to the MacBook's surface for better sustained performance.³

For an M4 Air, the same principle applies. Internal pads help the bottom panel become a more effective heat spreader. They do not remove heat from the laptop by themselves. The heat still has to leave the bottom panel and enter the surrounding air or an external heatsink.

3. Where a copper shim fits

A copper shim is a rigid thermal bridge. Copper conducts heat far better than typical elastomer thermal pads, so it can be useful as a local hotspot spreader or gap bridge. However, rigidity is also the hazard. Too thick a shim can create pressure points, prevent the case from closing naturally, or stress the board.

The safer approach is to treat the shim as optional:

• Start with thermal pads to establish a working conduction path.
• Use a small copper shim only if there is a clear local gap or hotspot bottleneck.
• Keep the footprint modest, usually around 15x15 mm to 25x25 mm.
• Test 0.5 mm and 0.8 mm before considering 1.0 mm.
• Deburr and flatten the copper; do not leave sharp or bowed edges.

Custom-making a shim is reasonable if it is cut from pure copper sheet and finished carefully. A simple flat square is preferable to a complex shape. The aim is controlled contact, not maximum metal volume.

4. Why the external interface matters

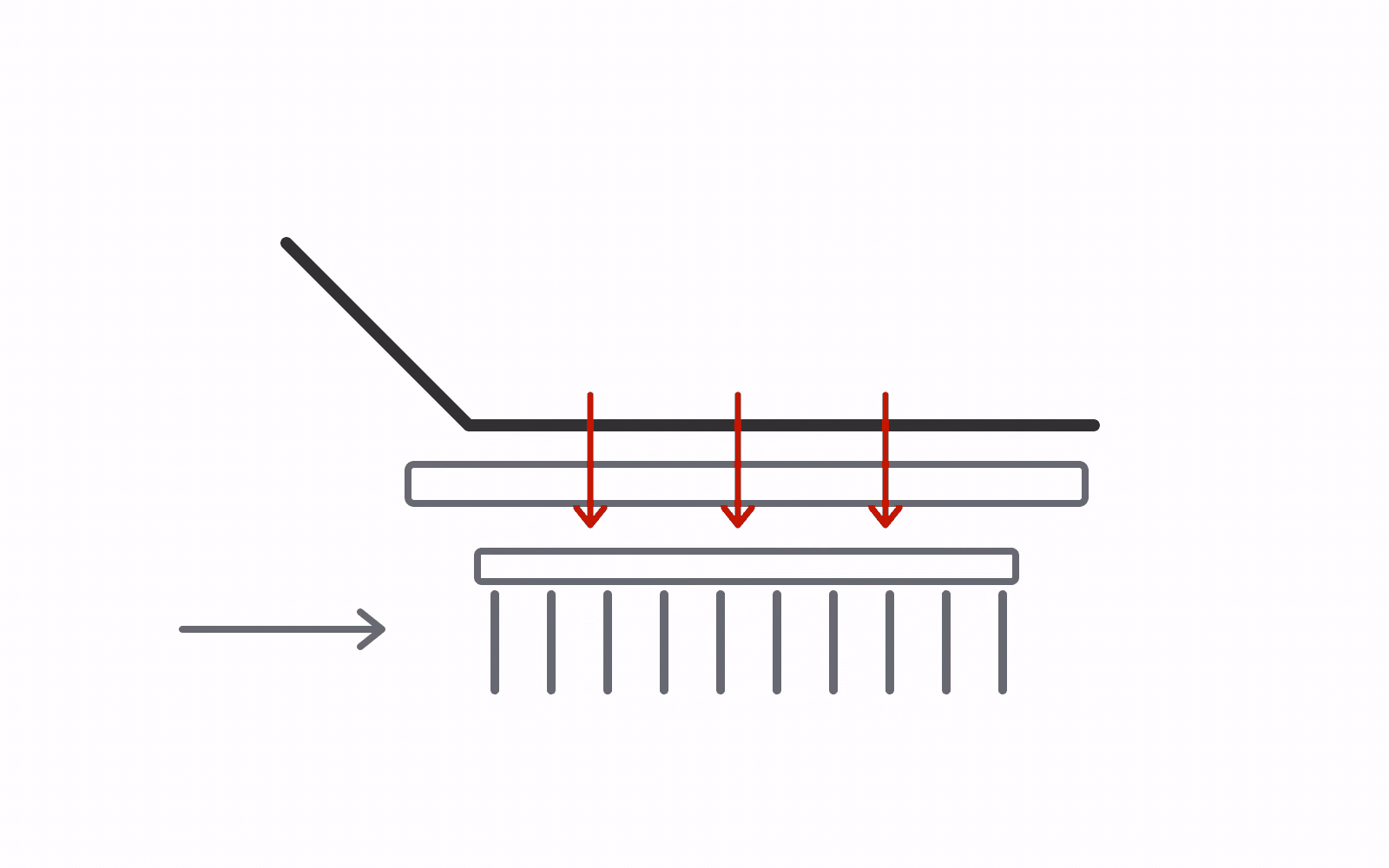

If the MacBook sits directly on a heatsink stand without an interface layer, the contact is not truly continuous. Microscopic gaps and air pockets dominate the thermal resistance. This can waste much of the external heatsink's capacity.

There are two practical interface choices:

Thermal Grizzly describes KryoSheet as a graphene pad alternative to thermal paste with no liquid components, meaning it does not dry out like paste. The same source warns that KryoSheet is electrically conductive.⁴ That makes it more attractive outside the laptop than inside it, where accidental electrical contact is harder to control.

5. The SVALT stand question

The SVALT DHCR dock is a strong thermal product, but it is primarily a dock/clamshell-style solution. For normal open-lid use, the more relevant product family is the Mx stand line. SVALT describes the Mx heatsink as a 4-pound aluminum block with 28 fins and about 709 square inches of surface area.⁵ SVALT also describes MxSW-lo as a cooling stand configuration rather than a closed-lid dock.⁶

A massive passive stand helps in two ways: it increases thermal mass, and it increases surface area. Thermal mass delays heat soak; surface area improves steady-state rejection. However, natural convection still limits long-run performance. For near-peak sustained workloads, passive area alone is unlikely to be enough.

6. Adding a quiet 120 mm fan

A silent or low-RPM 120 mm fan changes the system materially. It turns the large passive heatsink into a forced-convection cooler. The Noctua NF-A12x25 PWM is a sensible example because its official specifications list a 120x120x25 mm format, 0-2000 RPM speed range, 102.1 m3/h maximum airflow, 2.34 mm H2O static pressure, and 22.6 dB(A) maximum noise.⁷

With internal pads, a clean external interface, a massive heatsink stand, and a quiet fan, the setup becomes credible for high sustained performance. It is still not guaranteed to hold a full 27 W indefinitely in all conditions, but it is the first configuration that plausibly approaches the desired "near peak" behavior for extended work.

7. Parts shortlist

The following list prioritizes practicality over theoretical maximum conductivity.

8. Expected outcome

The expected gains should be treated in tiers:

9. Practical cautions

• Do not force the bottom case closed after adding internal materials.
• Keep electrically conductive materials away from exposed circuitry.
• Graphite and graphene sheets are often electrically conductive.
• Use external interface material only in removable zones if the laptop will be used normally away from the stand.
• A warmer bottom shell is not a failure; it is evidence that heat is leaving the chip area. The question is whether that heat then reaches the stand and air efficiently.

10. Final recommendation

For a reversible, open-lid MacBook Air setup, the best first build is:

1. Internal high-quality thermal pads, tested conservatively at 0.5 mm and 1.0 mm.
2. A clean external interface layer, preferably KryoSheet for cleanliness or a thin pad for better gap filling.
3. A massive heatsink stand such as SVALT MxSW-lo.
4. A quiet 120 mm fan aimed across the stand fins.

The copper shim should be reserved for a second pass after fit and thermal behavior are observed. It can help, but it is not the first-order cooling solution.
